PT. MIMAKI INDONESIA

UCJV300 Series

1. "Multilayer print" for a new advertisement expression

1) 4 layer print [Day & Night Printing]

The combined solutions of the 4 layers print and the inside lighting of graphic will present the amazing image-change named [Day & Night Printing] when the printed media is lighted from the back.
It is a particular sign method with an appeared image switching between daytime and nighttime, double face print of front and reverse image by multi layers print. They will contribute to receive a high value-added job to your business, because such advantageous methods have been difficult.

[Day & Night Printing] : 4 layers print configuration image


[Day & Night Printing] : 4 layers print configuration image

[Day & Night Printing] : 4 layers Sign applying image


[Day & Night Printing] : 4 layers Sign applying image

Utilizing the plug-in tool of Adobe illustrator, [RasterLink Tools] of newly upgraded [RasterLink6Plus] enables to confirm the final image of 4 layers print on the PC monitor of Illustrator operation. As the view while backlight ON & OFF is shown before print at the monitor (*), it saves a retry of print to reduce media losses.
* Preview does not completely show the same with the practical image while backlight ON & OFF.


[RasterLink Tools] screen (image)

[RasterLink Tools] screen (image)




2) 5 layer print [Front & Back Printing]


Different printed design can appear on the "Front and Back" by one time print.
By printing on a transparent film with five layers, the [Front&Back Printing] of different design on the two sides is realized. A different image of indoor and outdoor of one window sign, etc. , it is a new proposal of more attractive sign with higher design property.


5 layer print [Front & Back Printing]

5 layer print [Front & Back Printing]: Outside / Inside

2. On-demand print utilizing UV characteristics

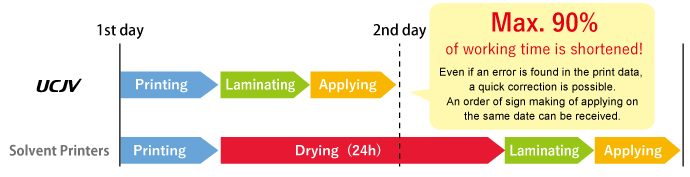

1) Quick access to next processing and sign applying due to UV ink property

With the UV ink property of immediate curing upon UV light irradiation, no drying time is required. The post-processing and sign applying are possible instantly, improving the productivity and receiving an order of short delivery time.


Max. 90% of working time is shortened!

2) Wider application range with UV print


-1- Vibrant print with eye-catching

According to the higher color density of UV than solvent, UV print can create a more vivid color expression. The color brightness of UV is the key to add value to created signs.

Comparison of UV and solvent printer (image)


Comparison of UV and solvent printer (image)

UCJV300/150 can create more vivid expression with a higher color density. High color density print is not easy by solvent as the property of taking time of drying for ink bleeding.


-2- Possible to print wider range of materials for broadening applications


By applying UV ink, not only PVC and tarpaulin, also, other materials difficult to solvent and latex such as fabric, paper and PET film are printable. UV can provide a diverse printing application.

Banners and flags (fabric)

Banners and flags (fabric)

UV ink is good to print fabric as no bleeding because of the quick ink curing upon UV irradiation.

Shoji (sliding paper door---Japanese paper)

Shoji (sliding paper door---Japanese paper)

Paper print such as Japanese paper is also available. Shoji, fan and poster in paper should be fine to print.

Letter printing to wall paper (patterned wall paper)

Letter printing to wall paper (patterned wall paper)

Utilizing white ink enhances the good opacity to print letters and illustration on patterned or deep colored wall papers.

Swing P.O.P. (PET film)

Swing P.O.P. (PET film)

Available to print PET film, too. Making both promotional goods and sign boards is an attractive proposal to your clients.

Stickers (Colored media)

Stickers (Colored media)

White ink is effective to print on color media.


3. Newly developed environmentally friendly UV ink, [LUS-170] and [LUS-175]


[GREENGUARD Gold] certification

Newly developed ink, [LUS-170/175] adaptive to environment, generates hardly VOC and can cure without the irradiation of short wavelength UV. [LUS-170/175] yellow ink is eco-friendly and nickel free though general yellow inks are compounding it. [LUS-170/175] gained the [GREENGUARD Gold] certification, which is based on most strict global standard of chemical substance diffusion.
And its adaption of the criteria is approved by the 3rd party of certification authority.
[GREENGUARD Gold] certification assures the product property conforms to schools and medical facilities.
* [LUS-175] is only available in specific countries


Clear ink added! New!


Visibility of indoor poster is enhanced.

Glossy printing can give the finish of high-quality feeling with the effect of freshness and sizzling of food.
In comparison to a standard poster, a poster wth glossy printing can get higher visibility.


Glossy printing

Texture expression

Printing the clear texture on the color print can create the expressive design to get one that cannot help touching it at a glance.
UCJV300 Series are suitable for an easy operation of Print & Cut to create a POP having the texture expression by clear ink on the color print.


Texture expression

Clear print on the transparent film

Matte finish printing on the transparent film can create the window display like frosted glass using an irregular reflection of light by the printed clear ink on the film surface.
The new graphic expression with the UV clear ink can extend widely the business possibilities.


Matte finish printing on the transparent film

4. Flexible UV Ink [LUS-200] New!


[GREENGUARD Gold] certification

The LUS-200 ink has 200% stretchability after curing.
The ink film retains the print quality, and will not crack even when printed materials are bent or stretched during post-print processes.
[LUS-200] also gained the [GREENGUARD Gold] certification.


5. Productive cutting functions. A new function of [ID Cut] will improve the work efficiency


1) Print & Cut is available by one unit printer


Label

Having high function and high performance cutting, [UCJV300/150-160] is possible to make labels and stickers by one unit.
Several productive cutting functions are prepared to [UCJV300/150-160], which are selectable to suit your job:

  • [Continuous registration mark detection] for consecutive cutting,
  • [Over Cut / Corner Cut] for cutting sharply on preventing an occurrence of uncut,
  • [Intermediate Cut] for a correct cut of long outline by multiple corrections of position with intermediate registration marks,
  • [Register mark of Zero margin] for saving media losses to eliminate the margin between register marks.

And more.


2) A newly equipped function [ID Cut]: Quicker and easier operation


[ID Cut] is a function to print together crop mark and ID for recognition of cutting details and media rotation of job and then cut data of every print data is readable to start the cut automatically.
It saves the labor of confirmation of media direction and no need to have every cut order by operator on the RIP, even in a case of multiple types of small lot cut. It reduces media loss by data transmission error.

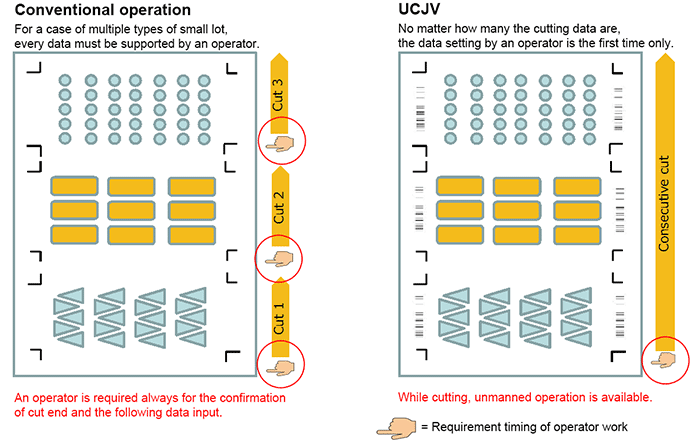

ID Cut function (image)


ID Cut function (image)

6. Upgraded RIP software, [RasterLink6Plus], [RasterLink7]


[RasterLink6Plus] is developed for new functions of the preview confirmation of 4 layers print (*) and [ID Cut] of [UCJV300/150]. Those functions can reduce the number of working process to contribute to improve the work efficiency of customers. Furthermore [RasterLink6Plus] is upgraded to support the version 1.5 or above of PDF data with the further reinforcement of RIP processing functions of [RasterLink6]. An image of PDF data including transparent effect is able to print faithfully as the original.
* The 4 layers print is available by UCJV300 only as the white ink is mountable.




Newly developed [RasterLink7] is equipped with more useful and advanced functions!
With increased RIP processing speed, usability, and productivity, it supports Variable printing.


UCJV300 Series Catalog (3.11MB)pdf file

Model

UCJV300-75 Maximum print/cut width: 800 mm (31.5")
UCJV300-107 Maximum print/cut width: 1,090 mm (42.9")
UCJV300-130 Maximum print/cut width: 1,361 mm (53.6")
UCJV300-160 Maximum print/cut width: 1,610 mm (63.4")
