ID Cut function which is provided with our products makes labor-saving process and efficient printing & cutting operations possible
A new function "ID Cut function" that enables continuous cutting operation to be performed automatically is adopted.
The "ID Cut function" is the function that automatically scans printed-out register marks with ID, then reads and cuts cut data. While any operators scanned register marks and specified cut data for each cutting job in the past, use of the "ID Cut" function is now made possible to perform unmanned and continuous cutting operations, and operators can proceed with another operation simultaneously when the machine is performing the cutting operation.

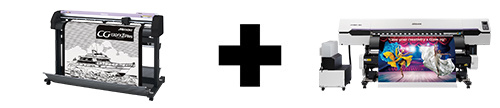

CG-FXII can use ID cut function in combination with optionally available JV300 Plus
JV300 Plus is capable of using ID Cut by means of the CG-FXII Plus after printing out data provided with ID.
High speed continuous crop mark detection
An optical sensor enables automatic consecutive detection of crop marks throughout the nested image which the Inkjet printer prints, in combination with the automatic adjustment function to obtain precise contour cutting.
Crop mark position data, which are received by command from standard attached plugin software "FineCut", enables quick movement between the crop marks. This function enables stress-reduced cutting.
By continuously detecting a maximum of 4 points, nested images in both X axis and Y axis can be cut aligning each image automatically.
Accurate media feeding ensures precise contour cutting over longer-length prints.
Necessary media length is fed in advance to reduce tension during cutting. This functions increases the precision of long-length print media cutting.
“HALF CUT”mechanism, a proprietary technology of Mimaki
With the original half cut function, the backing sheet can be cut leaving a little bit of half cut connecting points,which can be easily detached when necessary.Various media without backing sheets can be also cut.
Engineered Head Unit
Media is automatically cut by a standard sheet cutter.
- Selectable clamp pressure with high and low setting ensures accurate cutting of various media.
- Selectable three jog speeds ensure proper and easy positioning of the head to the point.
- Over-cut function makes the starting and ending points overlapped, which eliminates uncut portion of the media.
- Media can be loaded from back or front.
- Up to 6 roll media can be set at a time(1 set standard).
- Plug-in cutting software for CorelDRAW and Illustrator is included.
- A special adaptor to use commercially available pens and USB interface are included.
|CG-75FXII Plus||Effective cut width: 760 mm (29.9")|
|CG-130FXII Plus||Effective cut width: 1,300 mm (51.2")|
|CG-160FXII Plus||Effective cut width: 1,600 mm (63.0")|
