High-Quality, High-Precision Printing: 1800 dpi maximum
Supports Up to 1800 dpi and 6 colors, including light colors
Equipped with 1800 × 1800 dpi mode*. Even detailed drawings and extremely fine text are reproduced beautifully and precisely.
Furthermore, the six-color configuration including light colors (Lc and Lm), enables beautiful non-grainy printing with natural, elegant gradations.
*6C+2SP ink set only

Ball screw mechanism: Mechanical structure for high-precision printing

Ball screw
Ball screws located at both sides (x-axis) of the print table stabilize table drive during printing and help produce beautiful prints.
Ball screws are also used at the z-axis side to achieve a table load capacity of 30 kg (66 lb), allowing the use of heavy materials and high-precision jigs for industrial applications.
High Productivity: Max. 8.0m²/h* productivity
An array of Eight staggered printheads achieves top-level productivity in the same product category.

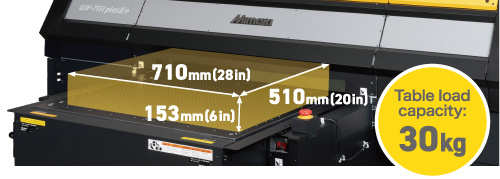

The printable area is 710×510 mm (28×20 in), enabling the printing of size 636×469 mm (25 × 18.5 in), which is often used for screen printing.
*Print conditions:4C+4C 600×600 dpi; 6 Pass/small>
Printable area

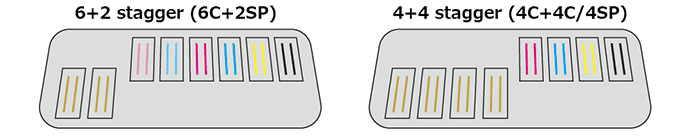

Optional 8-head/staggered arrangements
With an 8-head arrangement, you can select either 6 + 2 stagger (6C + 2SP) or 4 + 4 stagger (4C + 4C/4SP).

Head arrangement | Color set | Features |
---|---|---|
6 + 2 stagger | 6C + 2SP | High-quality printing with two spot colors added to the 6 colors C, M, Y, K, Lc and Lm. |
4 + 4 stagger | 4C + 4C | High volume production with high speed printing due to doubling the four colors C, M, Y and K. |
4 + 4 stagger | 4C + 4SP | Four colors C, M, Y and K as well as four spot colors enhance functionality and expressiveness. |
*Head configuration is selectable at the time of installation, and later modification is also possible. Our service personnel perform such modifications.
Mimaki's technology for realizing stable operation: Auto maintenance function to minimize downtime

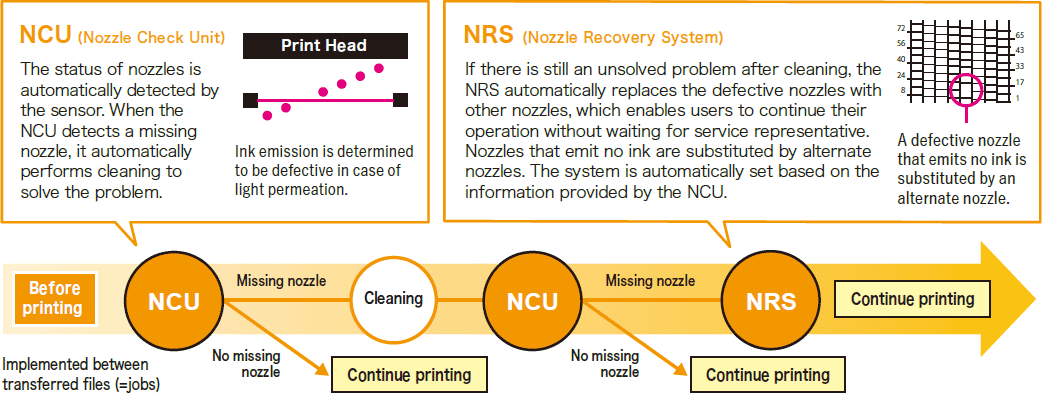

NCU (Nozzle Check Unit) & NRS (Nozzle Recovery System)

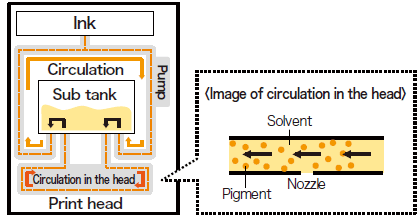

Ink circulation mechanism inside the head
Every head is equipped with an ink circulation mechanism that prevents pigment precipitation and removes bubbles from the ink (bubbles cause missing dots), which stabilizes printing and reduces the frequency of required cleaning and the running cost due to cleaning.

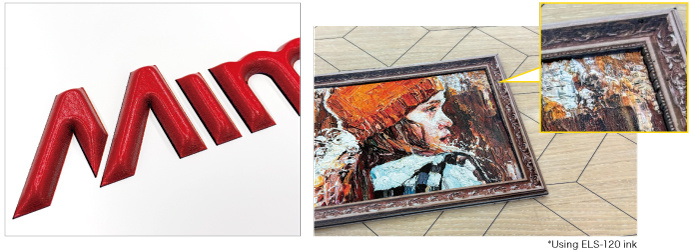

2.5D Embossed Printing: Up to 5 mm (0.2") Thick
The conventional 2.5D Texture Maker now features an Emboss Mode capable of printing up to 5 mm (0.2") in thickness. Accelerate added value and creativity.

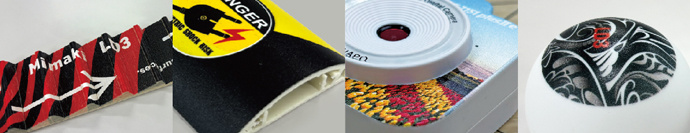

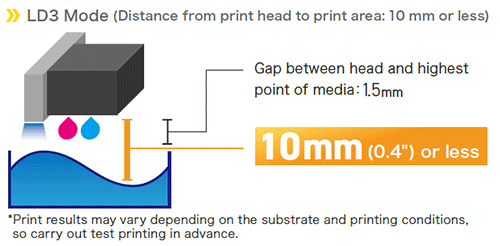

LD3 Mode: Up to 10 mm (0.4") height differences
Height Difference Printing: LD Mode (Long Distance Mode)
LD Mode is a printing mode that enables optimal printing even when the printing material surface has height differences.
The UJF-7151 plusII e supports LD3 Mode, capable of printing at distances of up to 10 mm (0.4")* from the print head to the printing surface.
*Includes 1.5 mm head gap


High-Speed Primer Function: Achieves Approx. 3.7 times the Previous Speed
The speed of primer printing, which enhances ink adhesion, has increased to approximately 3.7 times the previous rate, significantly boosting productivity.

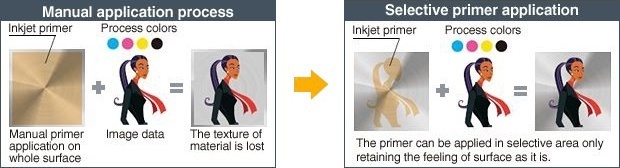

Automatic coating with inkjet primer
It is an inkjet primer that improves the adhesion of materials such as resin, glass, metal and those surface-finished.
Expanding the range of material selection, high value added applications can be produced.

As the primer, PR-200 is applied simultaneously with color printing, the PR-200 applying only to the necessary part of material is possible, too.
Therefore the texture of the base material that was lost by conventional manual primer applying can be maintained.
Patent number / JPN: 5817059 USA: US9,132,685 B2

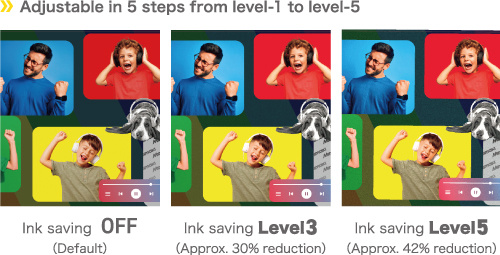

Ink Saving Function: Reduce Ink Cosumption with Just 2 Clicks
With just two clicks, the "Ink Saving Function" reduces running costs. It saves up to approx. 42% in ink consumption while maintaining natural color tones.

Highly functional inks realize a variety of expressive effects
White

Printing with high-concentration white ink as the basic color on transparent or deep-color media makes full-color images more vivid.
Clear

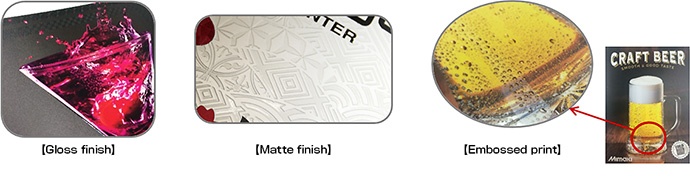

It is a clear ink that can give an additional value such as both gloss and matte tones, texture expression according to the application. UJF-7151 plusII e mounting system for clear print control, " MCC (Mimaki Clear Control)" allows the minimization of uncured time to prevent dust from sticking and to avoid bubble generating. It provides high-grade glossy representation and expressive embossing feeling with highly-concentrated clear to lead a fine and beautiful texture print.

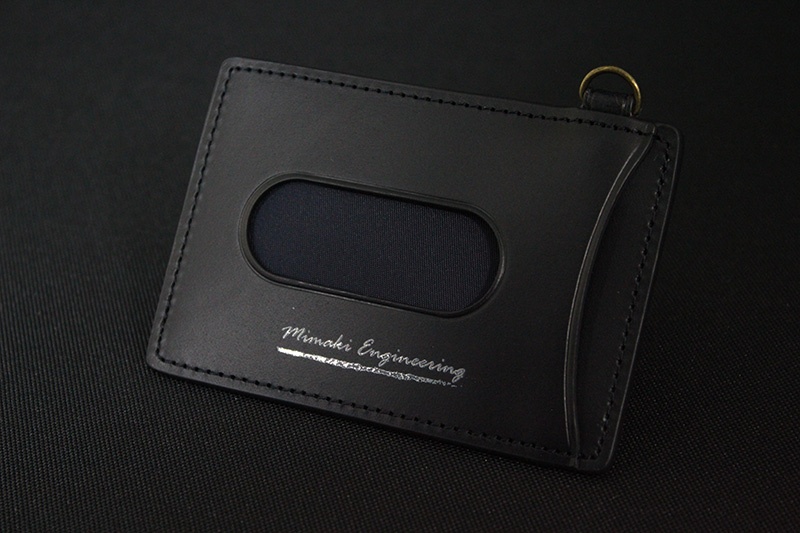

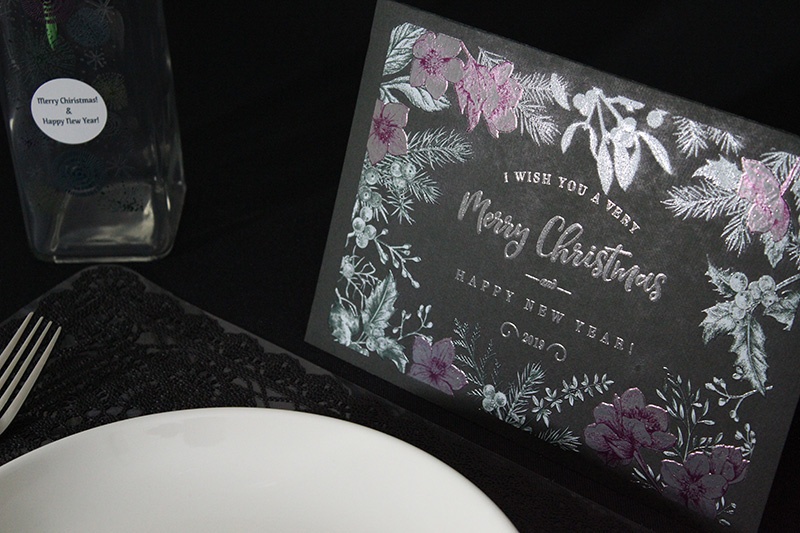

Metallic

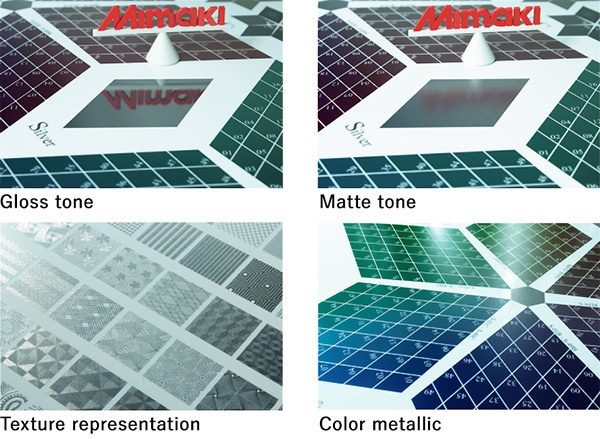

The MMC (Mimaki Metallic Control) is the system dedicated to metallic printing using Mimaki's unique "Surface Imaging technology". The MMC printing technology that separately prints one type of metallic ink in gloss and matte tones.
Using separately the beautiful glossy tone print like mirror finish and the matte tone print of metallic texture with suppressed gloss feeling will expand the range of expressions. Texture expression with embossing effect can be printed by changing the inkjet concentration. The texture expression whose appearance changes according to the light reflection provides a higher level of performance appeal. Color metallic expression is possible by printing with colored ink on top of metallic ink. By combining the application of metallic, color and color metallic, high-quality design print can be available.

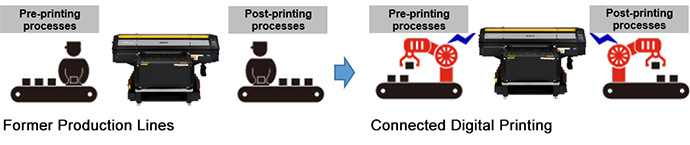

Connected digital printing
Supports MDL (Mimaki Device Language) commands to automate the printing process
Mimaki offers command sets to enable customer production systems and peripheral devices to control our printers. Through applying these commands, the position and height of the media setting table, the start of printing, and other printer operations can be controlled. It also allows for the acquisition of remaining ink level and error information from the printer.
Regarding the MDL command, customers are able to build systems optimized to their individual applications by developing the necessary software using technical information (SDK) provided from Mimaki. The system will contribute to automation and labor saving in customers business.

UJF-7151 plusII e Catalog (4.52MB)
Model
UJF-7151 plusII e | Maximum print area: 710 x 510 mm (28 x 20") |
---|
Corresponding Ink
ELH-100

LH-100

MUH-100-Si

ELS-120

LUS-120

LUS-350

PR-200

Application list

- Industrial Print

- Package

- Cylindrical Print
