1. Achieving high productivity / high image quality

38% faster printing speed than a conventional model in Draft mode!

A wide range of print modes are available to suit your work, from the fastest mode of 135m²/h, to Draft mode of 69m²/h, and to High Quality mode of 21m²/h.

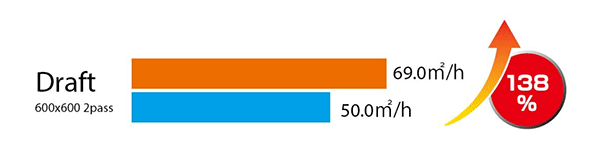

In Draft mode, it achieves about 138% productivity compared to our conventional machine (TS55-1800).
When outputting a 1200 x 2400 mm sized print, the number of printed pieces per hour has been improved from approximately 13 to 18 pcs., which will be able to meet the market needs for high production.

---

---

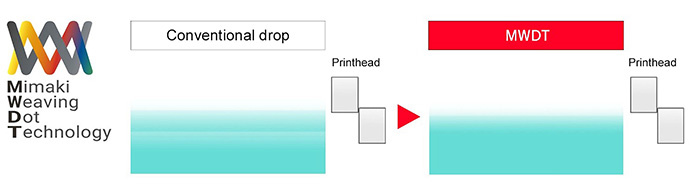

Mimaki Weaving Dot Technology（MWDT）
- New technology realizing high image quality

---

A new drop technology "Mimaki Weaving Dot Technology" expressing high-quality images suppresses an impact on printing caused by the individual difference of the head and misalignment in stagger adjustment and optimizes firing order, thereby realizing more accurate ink landing.
This makes it possible to reproduce deep colors vividly without unevenness and realizes beautiful print quality.

---

---

Two options for low running costs in production

---

The "10kg ink tank supply unit 2" and the "Mini jumbo roll unit" are two options that can be used to reduce production costs.

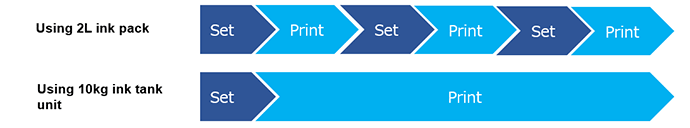

The 10kg ink tank supply unit 2 reduces the cost per cc compared to a standard 2L ink pack. The capability of continuous printing for a long time helps to reduce machine downtime, too.

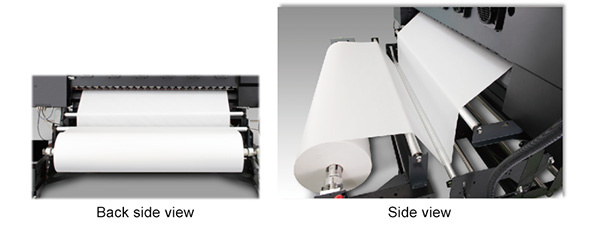

The "Mini jumbo roll unit" can be used to load long transfer paper, further minimizing running costs.

---

---

---

2. Mimaki print core technology for stable operation and stable image quality

---

Stable operation by new conveyance mechanism with renewed conveyance control

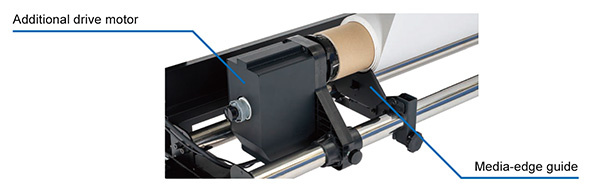

Take-up device and Media edge guide

The motor of the take-up device is mounted on both sides. In conventional models, the drive motor was installed only on one side, but by installing it on both right and left sides, the force applied during winding is equal on both sides and improving the stability of winding.
The newly designed media-edge guide reduces misalignment due to media meandering, that ensures the print for a long time.

---

---

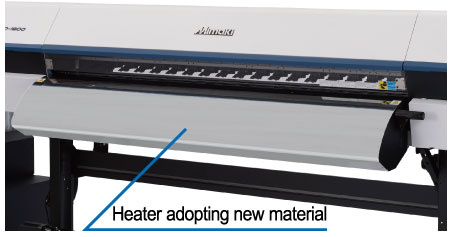

Post-heater

---

Inheritance of Mimaki print core technology supporting stable operation and pursuing beauty in print

---

1. DAS (Dot Adjustment System):
   The printer automatically adjusts and optimizes the dot positioning and feed volume affecting print quality, corresponding to changes in the target media and printing conditions.
2. Waveform Control:
   Sophisticated ink ejection control unique to Mimaki printers ejects near-spherical droplets of ink for sharp expression of text,ruled lines and edges.
3. MAPS4 (Mimaki Advanced Pass System4):
   Automatic optimal pattern selection according to printing conditions reduces banding and unevenness of color by introducing gradations to borders of passes while printing.
4. Variable Dot Control:
   Three different ink drop sizes, including a minimum drop quantity of 4pl, are intermingled to achieve smooth, high-quality prints with minimal graininess.
5. NCU/NRS:
   A sensor detects nozzle conditions and cleans them automatically. When nozzle clogging cannot be resolved, alternate nozzles are used to continue printing without slowing down.

---

3. Enhanced user friendliness

---

New functions for daily maintenance and remote operation have been added to enhance the convenience of operation.

Featuring a new cleaning mechanism improving maintainability while reducing downtime, and a V-shaped cutting function improving media transportability.

Introduction of cloth wiper
- Improved removal performance for thick adhesive clots on the nozzle surface

Compared with conventional scraping rubber wipers, the new wiping system soaks up unwanted ink droplets, reducing ink splattering on the head station.
By reducing the frequency of maintenance around the head and cap, daily care becomes simple and the machine can always be maintained in optimal condition.

---

---

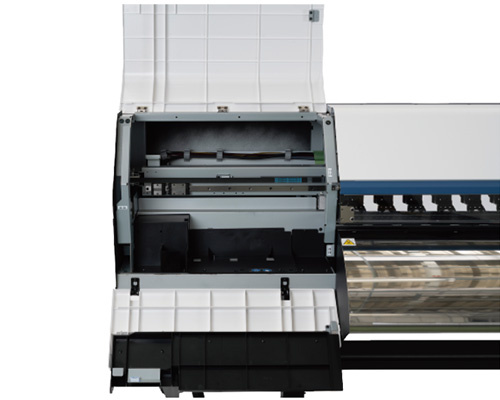

Easy-to-use maintenance space

---

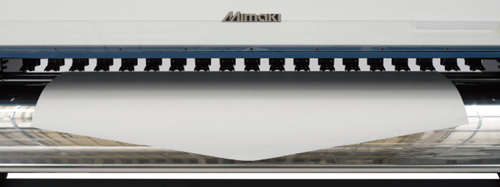

Automatic media cutting "V-shape cutting function"

---

The V-shape cutting function tapers the media into a V-shape before wrapping it around the paper core. You can choose between the conventional cutting method and the V-shape cutting method on the selection screen.
The V-shape allows the center of the media to be precisely attached to the paper core, reducing the potential for human error. Applying V-shaped cuts to unused odd ends of the media for single point of attachment also helps to conserve the media.

---

---

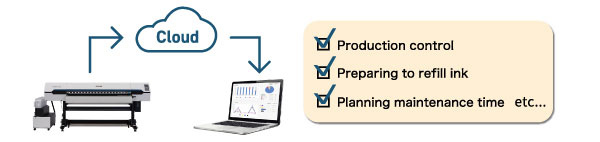

"Mimaki Cloud Technology PICT" achieve smooth and planned operations

---

The printer's operating status and ink usage can be monitored even when the user is away from the printer. It supports planned operations, such as performing other tasks while printing is in progress.
It also enables advanced planning of maintenance schedules and preparation for ink refills.
Mimaki Cloud Technology PICT

---

---

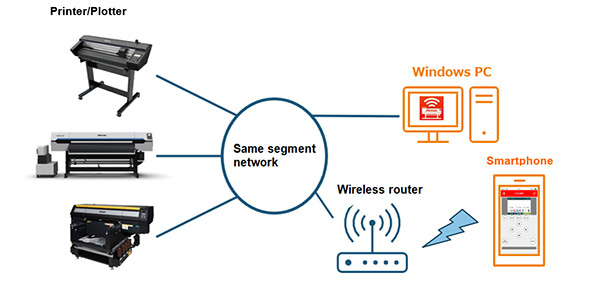

"Mimaki Remote Access (MRA)" enables wireless printer operation.

---

Enables you to check the status of your machine remotely from a smartphone or PC. This allows you to operate the unit and the panel from a distance, making the work more efficient.
Mimaki Remote Access

---

---

4. Mimaki "Sb411", high quality sublimation transfer ink with a proven track record

---

Software

---

TxLink5 Lite or RasterLink7 is bundled according to user's request.

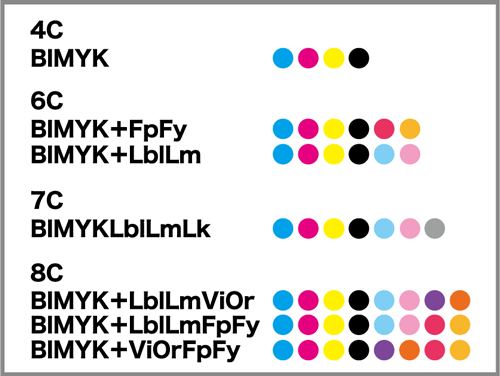

*RasterLink7 supports using Violet, Orange and Flouroscent color ink as spot color. For using special colors as process color, please select TxLink5.

---

---

---
